  4. YG(B)026SH Electronic Fabric Strength Tester
Product

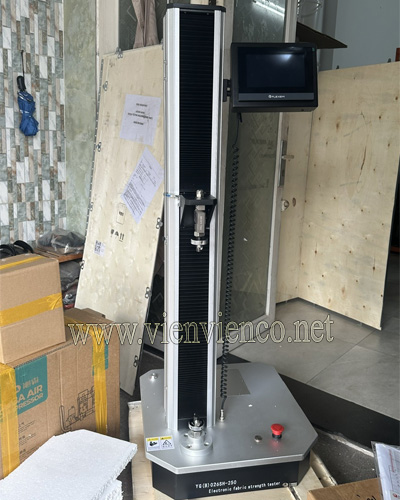

    YG(B)026SH Electronic Fabric Strength Tester

YG(B)026SH Electronic Fabric Strength Tester

  • Product Category: Testing equipment
  • Manufacturer: Darong
  • Code:

    YG(B)026SH

  • Price: Contact us
    • Warranty 12 months
    • Door-to-door delivery service
    • 24/7 support
    • Standard: GB/T3923.1/2, FZ/T70006, FZ/T70007, ISO4606, GB/T13772.1/2/3, FZ/T20019, FZ/T01030, ISO9073.3/4GB8687, FZ/T01085, ISO13934.1/2, ISO13935.1/2, ASTM D5034, ASTM D5035, ASTM D2261, ASTM D4964, ASTM D5587, ASTM D3936, ASTM D1683 (replace 434) JIS L1096, etc.
Feature of YG(B)026SH Electronic Fabric Strength Tester:
  1. YG(B)026SH Electronic Fabric Strength Tester is a high-precision universal testing machine designed to evaluate the mechanical properties of textiles and other flexible materials. Used for all kinds of textile tensile, tear, fixed elongation, fixed load, elasticity, thread slip, peel and other mechanical properties test.
  2. The tester helps manufacturers evaluate fabric strength, elongation, tear resistance, seam performance, and overall mechanical durability.
  3. YG(B)026SH equipped with advanced load cell technology, providing excellent force measurement accuracy up to ±0.2% F.S. for highly reliable results.
  4. The system connects directly to a computer, allowing real-time monitoring, data acquisition, curve analysis, report generation, and result storage.
  5. Wide speed range from 0.01 to 1000 mm/min enables testing according to various international standards and material requirements.
  6. Users can select manual or pneumatic grips depending on sample type and testing requirements.
  7. Sampling rate up to 2000 times per second ensures accurate capture of force and elongation data during testing.
  8. YG(B)026SH used AC servo motor control, ball screw transmission, and automatic positioning for smooth operation and excellent repeatability.
  9. Quickly prints test reports and results for laboratory documentation and quality records
Specifications of YG(B)026SH Electronic Fabric Strength Tester:
  1. Model: YG(B)026SH
  2. Measuring Range: 500N / 1000N / 2500N / 5000N / 10000N
  3. Clamping Modle: Manual/Pneumatic
  4. Minimum indexing value: 0.01N
  5. Force measuring accuracy: ≤±0.2%F·S
  6. The maximum stroke of the instrument: 600mm
  7. Clamping Distance Accuracy: ±0.1mm
  8. Stretching Speed: (0.001 ~ 1000)mm/Min
  9. Elongation resolution: 0.01mm
  10. Sampling Frequency: 2000 Times/Second
  11. Power supply: AC220V - 50Hz 600W
  12. Overall size :(550×530×1400)mm(host L×W×H)
  13. Weight: 74kg (standard)
Delivery method: Nationwide.
     - Free in city. HCM
     - In the station or express delivery if the customer in outside the province (customers pay shipping costs themselves)
Commitment to customers:
==> Supplying genuine goods (CO / CQ attached), 100% new (with the original belt)
==> Ensure customer's interests when buying products while in warranty, and maintenance for life.
=============== ///=============
