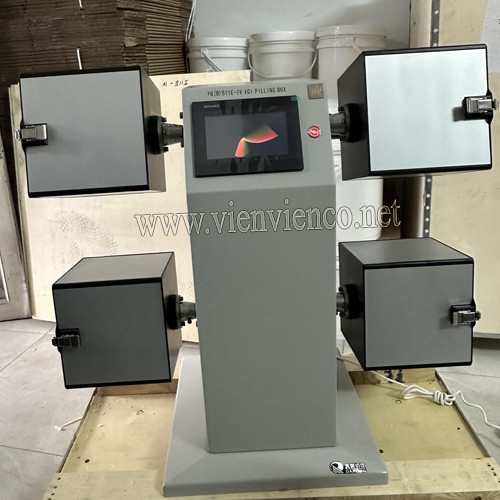

YG(B)511E-IV ICI Pilling Box Tester

• Product Category: Testing equipment
• Manufacturer: Darong
• Code:

  YG(B)511E-IV ICI

• Price: Contact us
• ORDER
• Tweet
• • Warranty 12 months.
  • Delivery.
  • Caring thoughtful.
  • 24/7 support.
  • Standards: GB/T 4802.3, ISO 12945.1, IWS TM152, BS 5811, JIS L 1076 (Customizable)

• Product Information

Feature of YG (B) 511E-IV ICI Pilling box:

1. YG(B)511E-IV ICI Pilling Box Tester is designed to determine the pilling and fuzzing resistance of textile fabrics under controlled tumbling conditions.
2. YG(B)511E-IV ICI Pilling Box Tester is widely used in textile laboratories, garment manufacturers, quality control departments, and research institutes to evaluate the surface durability of knitted, woven, and wool fabrics according to international testing standards.
3. The instrument simulates fabric wear during normal use by tumbling specimens in cork-lined boxes, allowing accurate assessment of pilling formation and surface appearance.
4. YG(B)511E-IV equipped with four independent pilling boxes, enabling higher testing efficiency and increased laboratory productivity.
5. Simulates real fabric wear conditions through controlled random tumbling to evaluate pilling and fuzzing performance.
6. High-quality cork lining ensures consistent friction conditions and reliable test results.
7. YG(B)511E-IV with built-in electronic counting system provides precise control of testing cycles and improves repeatability.
8. Frequency-controlled drive system delivers smooth rotation with low vibration and noise levels.

Specifications of YG (B) 511E-IV ICI Pilling box:

Model	II	IV	VI	IX
Number of test chambers	2	4	6	9
Chamber dimensions	(235 × 235 × 235) mm (Without lining)
Chamber rotation speed	(60 ± 2) rpm (adjustable from 20 - 99 rpm)
Counting range	2 - 99,999 times
Sample holding tube	Φ31.5mm × 140mm, Weight: 52.25g (4 tubes/cage)
Power supply	AC220V ±10%, 50Hz
Power consumption	360W	1200W
Dimensions (L × W × H) (mm)	930 × 500 × 580	930 × 500 × 950	930 × 500 × 1410	1400 × 580 × 1520
Weight (kg)	60	65	125	165
