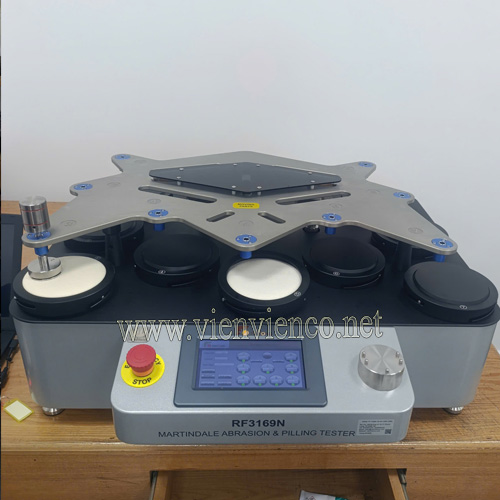

Features of the RF3169N Abrasion and Pilling Tester:
- The RF3169N Abrasion and Pilling Tester is used to evaluate the degree of wear and the formation of pilling on fabric surfaces after repeated friction.
- The machine generates standardized frictional motion along a defined trajectory, ensuring uniform and continuous force applied to the test specimens, which results in highly reliable test outcomes.
- Users can easily set the number of cycles, testing speed, and operating modes to suit different materials and testing standards.
- The tester allows multiple specimens to be tested simultaneously, meeting the requirements for rapid testing in production and quality control processes.
- The machine frame and load-bearing components are precisely manufactured using durable materials, ensuring long-term stability during continuous operation.
- Its well-designed mechanical system enables smooth operation with minimal vibration, making maintenance easier and extending the service life of the equipment.
- The RF3169N is suitable for textile factories, R&D laboratories, testing centers, and quality evaluation institutions in compliance with international standards.
Technical Specifications of the RF3169N Abrasion and Pilling Tester:
- 7” Touchscreen Operation, easy to use.
- Working Positions: 9 positions (or 3 positions for option)
- Abrasion Stoke Length: 24±0.5mm,60.5±0.5mm.
- Load Weight: 9kPa, 12kPa adding weights.
- The rotational frequency of the drive unit: outer driving unit,47.5±2.5rpm，Inner driving unit, 44.5±2.4rpm..
- Pressing Weight: 2.5±0.5kg.
- Pressing Weight Diameter: 120±10mm.
- Dimension: 750(L)×640(W)×360(H) mm.
- Weight: 112kg.
- Power: AC230V 50Hz / 60Hz.
