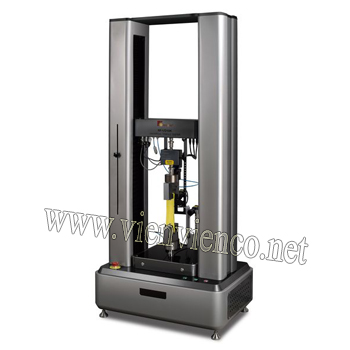

Features of the RF-UD10K Universal Tester:
- The RF-UD10K is designed to determine the load-bearing capacity and deformation characteristics of specimens subjected to tensile testing.
- It features a robust, stable design, making it suitable for material testing in both laboratory and quality control (QC) environments.
- The tester allows for configurable test parameters to meet specific testing requirements across a wide range of sample types.
- RF-UD10K incorporates precise force and displacement measurement systems, facilitating accurate tensile testing, elongation monitoring, and sample release.
- Compatibility with various grips and specialized fixtures expands the device's application range.
- Test data is recorded and processed via system software, enabling convenient monitoring, comparison, and storage of results.
- The RF-UD10K is the ideal choice for organizations requiring rapid, accurate, and high-quality assessment of material properties and durability.
Specifications of Universal Tensile Tester RF-UD10K:
- Capacity: 10KN/1000kg/2000lbf
- Column Distance (mm) 400
- Max. Crosshead Travel (Excluding Grips) 830
- Load Cells: 10N, 50N, 100N, 200N, 250N, 500N, 1kN, 2kN, 2.5kN, 5kN, 10kN
- Testing Speed Range (mm/min) 0.001-1000
- Max. Return Speed (mm/min) 0.001-1000
- Distension Accuracy (mm) 0.1
- Loadcell Accuracy 0.2% FS
- Software: PC Software
