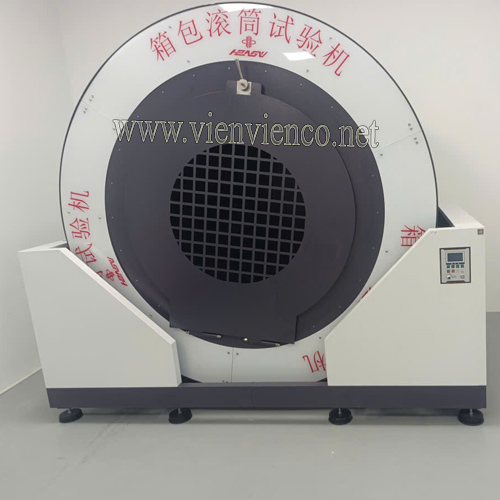

Feature of HY-555 Luggage Rolling Impact Test Machine:
- The HY-555 Luggage Rolling Impact Test Machine is specially designed to assess the durability and rolling performance of luggage, suitcases, trolley cases, and travel bags. The tester simulates continuous rolling movement and repeated impacts that luggage experiences while being pulled across uneven surfaces during daily travel.
- HY-555 helps manufacturers to identify potential weaknesses in wheels, handles, frames, and overall construction before products reach consumers.
- Widely used by luggage manufacturers, quality control laboratories, and product development centers, the HY-555 provides reliable data to improve product quality and long-term performance.
- Tests the performance of wheels, axles, handles, corners, frames, and other critical luggage components.
- Users can set testing speed and duration according to product specifications and testing requirements.
- Built-in digital counter accurately records test cycles for repeatable and standardized testing.
- Robust frame design ensures stable operation and reliable testing performance during long test periods.
- Simple control interface allows quick setup and efficient testing management.
Specifications of HY-555 Luggage Rolling Impact Test Machine:
- Roller speed: 2r / min (1 ~ 3 r / min speed adjustable)
- Set the number: 0 to 999,999 automatic shutdown, power off automatic memory function
- dam-board: steel Size: height: 8~10mm, thickness: 65mm
- Hardwood Dimensions: height: 65mm, Width 180mm
- Conical impactor: base diameter 400mm, height 150mm, R angle R20
- Observe the window: Plate punching inside sticks transparent acrylic board, safe and intuitive.
- This machine has the function: When the door is opened, the machine automatically shut down, which can effectively ensure safe operation.
- With the emergency stop button, you can operate when machine quickly shut down.
- Machine Size: about 310*160*250cm
- Weight: about 2000KG
- Power: 220V 50HZ
Delivery method: Nationwide.
- Free in city. HCM
- In the station or express delivery if the customer in outside the province (customers pay shipping costs themselves)
Commitment to customers:
==> Supplying genuine goods (CO / CQ attached), 100% new (with the original belt)
==> Ensure customer's interests when buying products while in warranty, and maintenance for life.
=============== ///=============
